Product Description

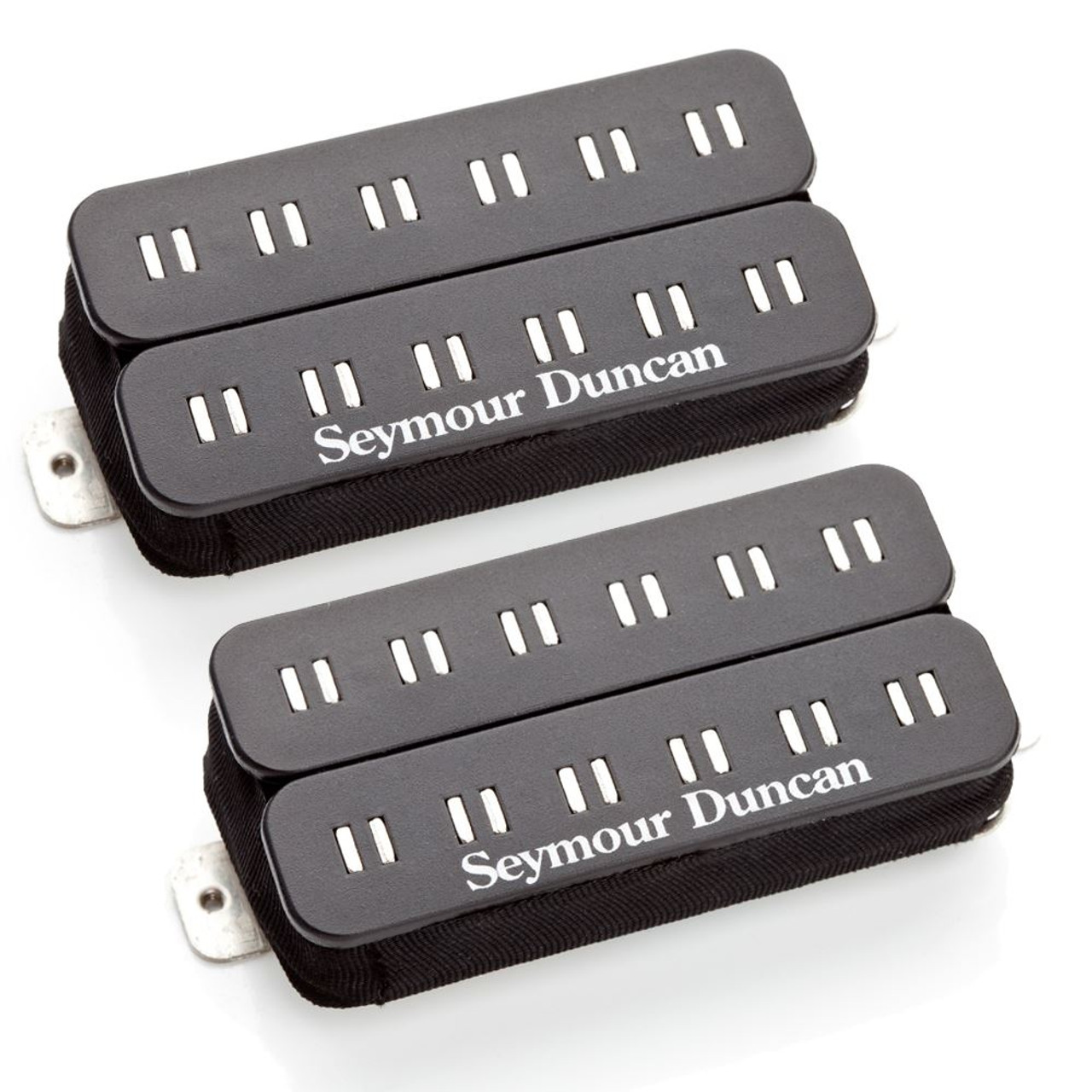

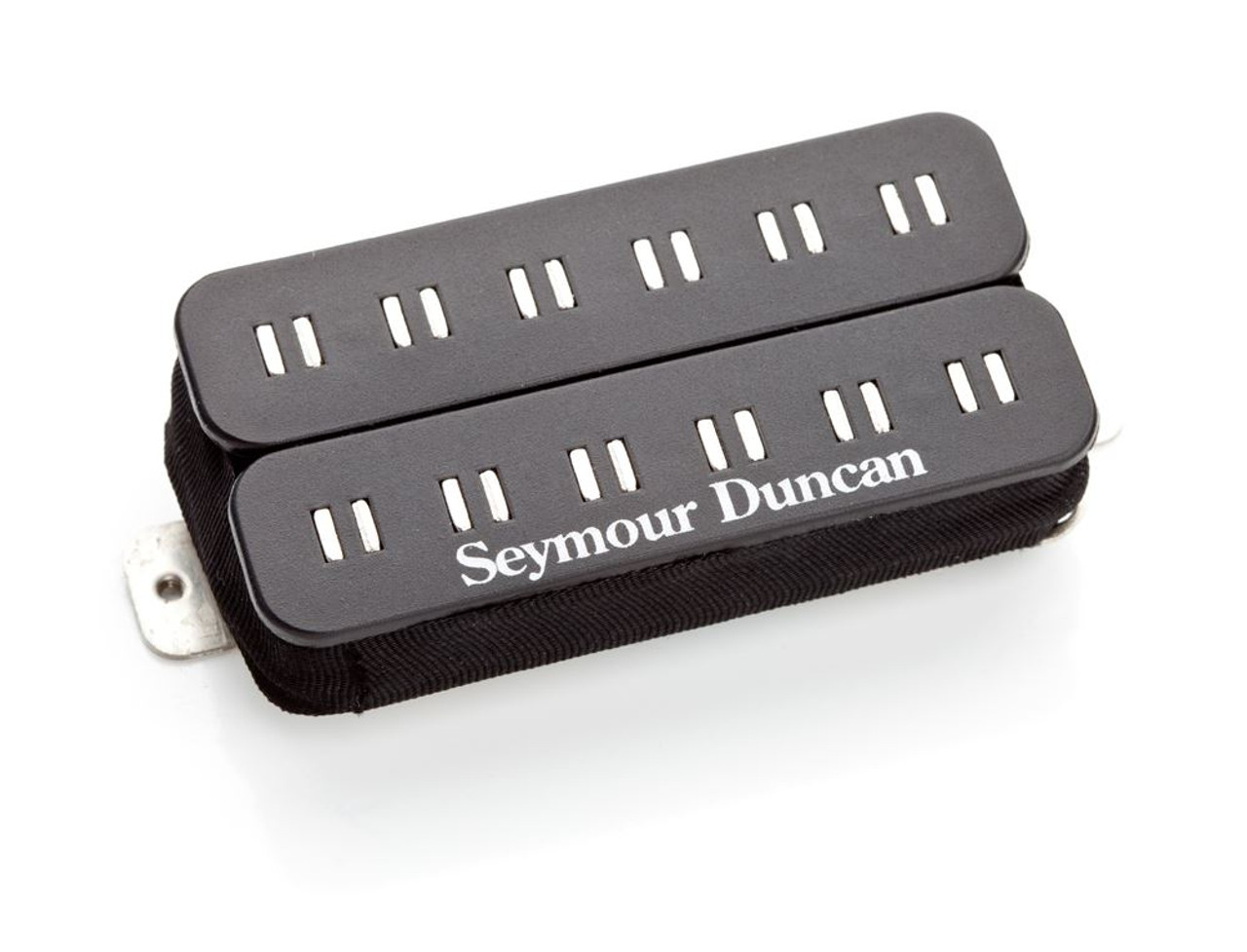

The Seymour Duncan PA-TB1 Original Parallel Axis Trembucker Neck & Bridge set. FREE shipping anywhere in the USA!
Application
Parallel Axis Trembucker provides modern sound. Great for country, pop, classic rock, jazz, blues, funk and heavy rock.
Description
Produces a modern, hi-fi sound. The tone is balanced, sweet, and bluesy with exceptional sustain. More output and mids than the PATB-3b Blues Saraceno model. The more gain you add, the more it sings, making it extremely versatile. Comes with four-conductor hookup cable.
Complete setup
The bridge version is high output. The neck version is compensated for tonal balance.
Guitars
Recommended for vibrato-equipped guitars. Works especially well with rosewood fingerboards.
Players
Richard Patrick / Filter, Gavin Rossdale / Bush, Jodee Frawlee / Starr Faithfull
Specs:
- Cable: Four conductor
- Resistance: Neck 7.5k, Bridge 15.7k
- Resonant Peak: Neck 6.9 KHz, Bridge 4.5 KHz
- Magnet: Alnico V Bar
- EQ (B/M/T): 5 / 4 / 7
Download wiring diagram here
|
About the Guitars: We used a '60's Classic Les Paul with a fresh set of American Flyer 10-46 gauge strings. About the Amps: We employed the "highest common denominator" philosophy in our amp selection. For clean tones, we used a silverface Fender Super Reverb with stock 4x10 "blue frame" speakers. We kept the Bright Switch "On" throughout. For crunch tones, we used a well-worn Marshall JCM 800 50 watt master volume head through a new Marshall 1960A Celestion®-loaded 4x12 cabinet. We plugged into the High output. With both amps we close miked straight-on with SM-57s through a Soundcraft Spirit Folio Mixer. These are the amp settings:
|
||||||||||||||||||||||||||||||||||||||||
Returns:
Most pickups can't be returned once installed because of the installation process that requires soldering, etc. Seymour Duncan however offers a fantastic 21 Day Return Policy! Here's the details:
Seymour Duncan / Basslines offers our 21 Day Real World Exchange Policy on all new pickups purchased in the U.S. and some other participating countries, which states the following: If for any reason you're not satisfied with the pickup's sound or construction, return it and your receipt to your dealer, or direct to the factory within 21 days for exchange with another pickups of equal or lesser value. To do this, please just send us an email and include your invoice number and the new pickup you'd like to exchange towards.
